Understanding Afterburners

An afterburner is an additional component attached to the rear of a jet engine, designed to inject fuel into the exhaust stream, significantly increasing thrust. The process involves:

• Fuel Injection: Additional fuel is injected into the hot exhaust gases exiting the engine.
• Combustion: This fuel combusts due to the high temperature, resulting in a substantial increase in thrust.
• Expansion: The rapidly expanding gases exit the nozzle, providing a significant boost in speed and thrust.

Afterburners are particularly useful for takeoff, supersonic flight, and combat scenarios where maximum thrust is required.

The Mechanics of Afterburner Takeoff

During takeoff, the afterburner provides the extra thrust needed to achieve liftoff quickly, especially when the aircraft is carrying a heavy payload or needs to reach combat speed rapidly. The process involves:

• Throttle Advancement: The pilot advances the throttle to the afterburner position.
• Fuel Flow Increase: The fuel flow to the engine increases significantly.
• Ignition: The afterburner ignites, providing an immediate and powerful thrust boost.

Aircraft Utilizing Afterburner Takeoff

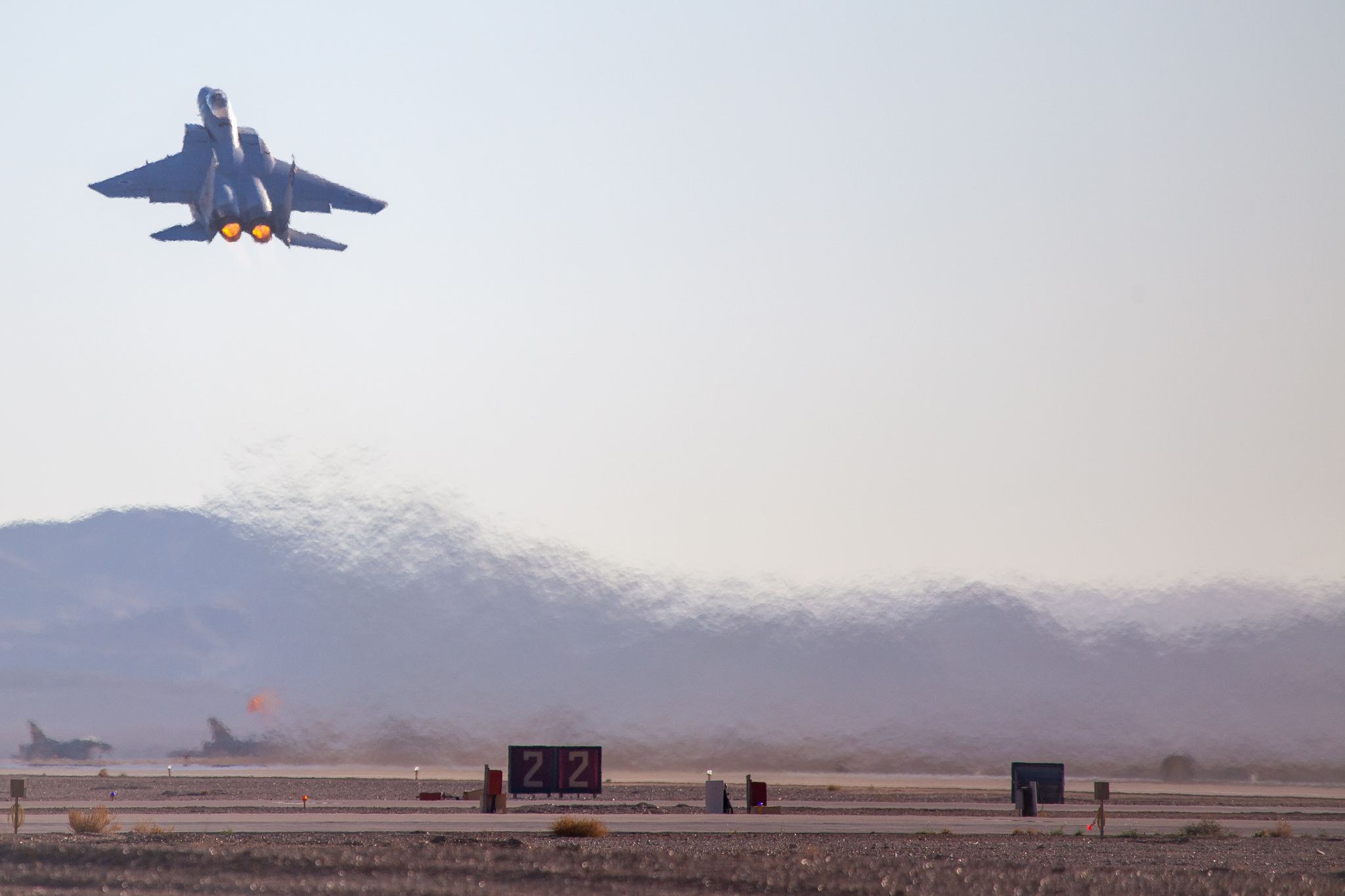

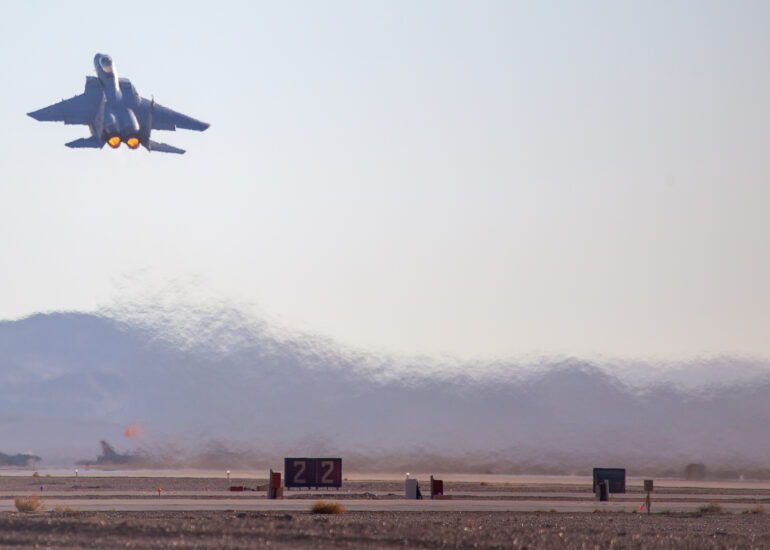

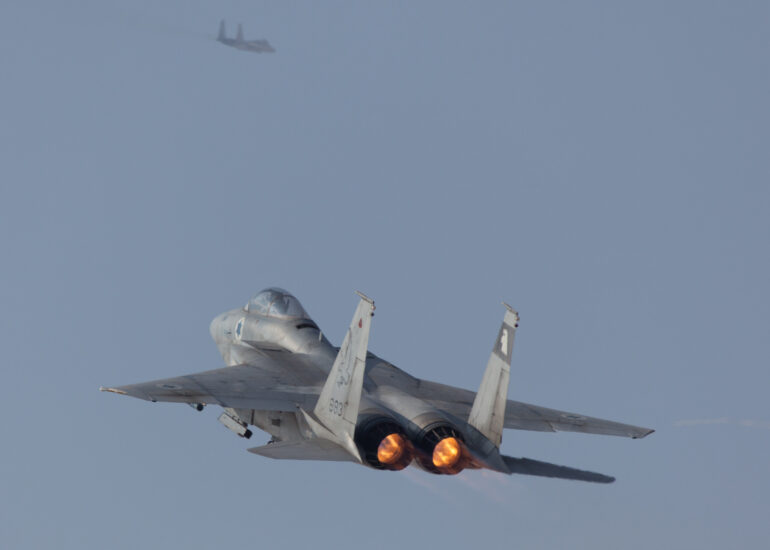

F-15 Eagle

The F-15 Eagle is a twin-engine, all-weather tactical fighter aircraft designed by McDonnell Douglas (now Boeing). It uses afterburners for both takeoff and combat situations.

• Engines: Pratt & Whitney F100-PW-229
• Thrust: 29,000 lbs (with afterburner)
• Top Speed: Mach 2.5
• Source

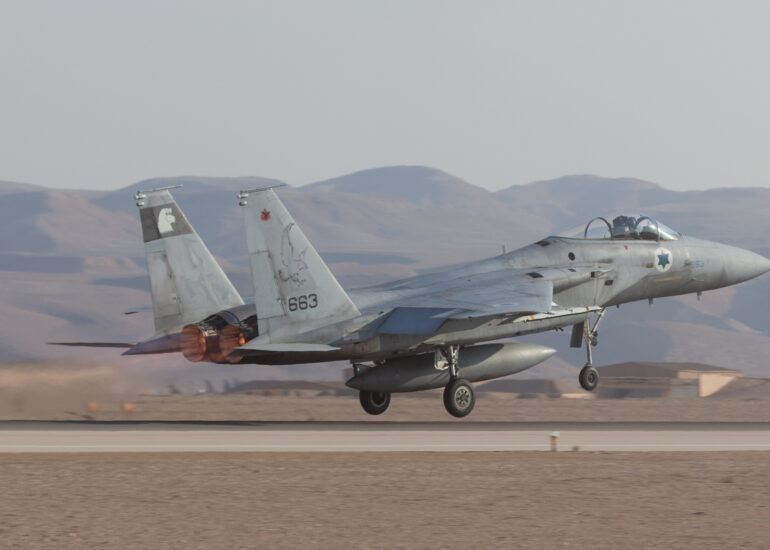

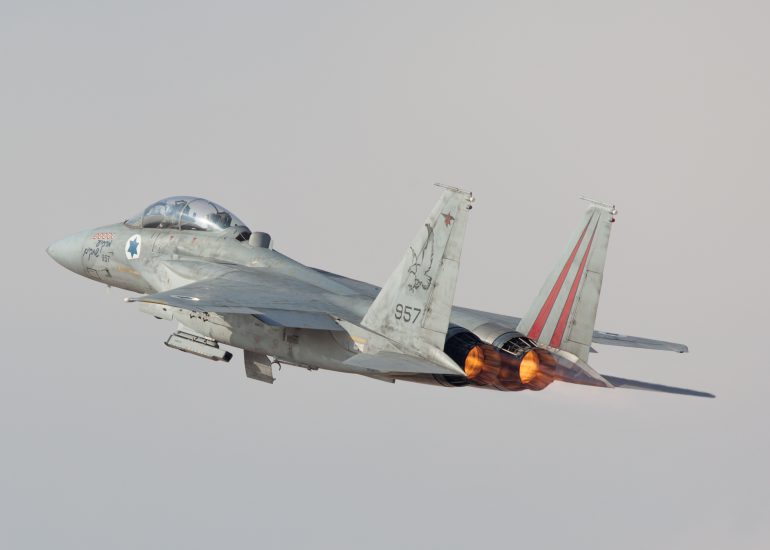

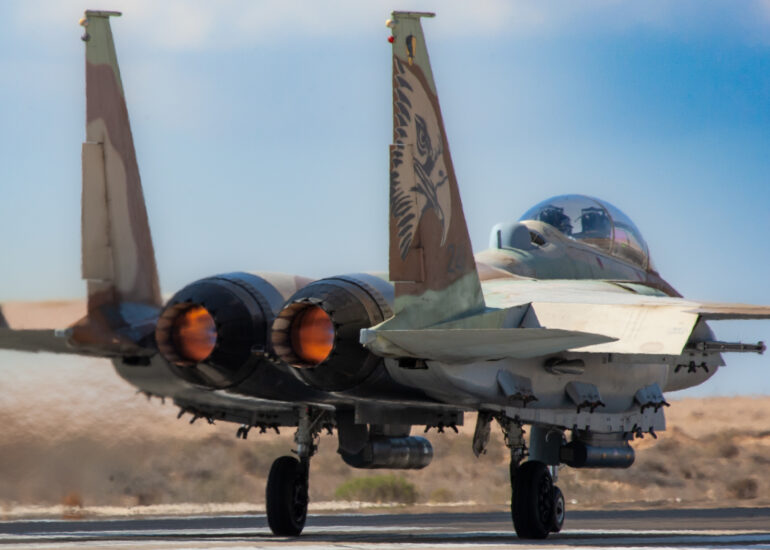

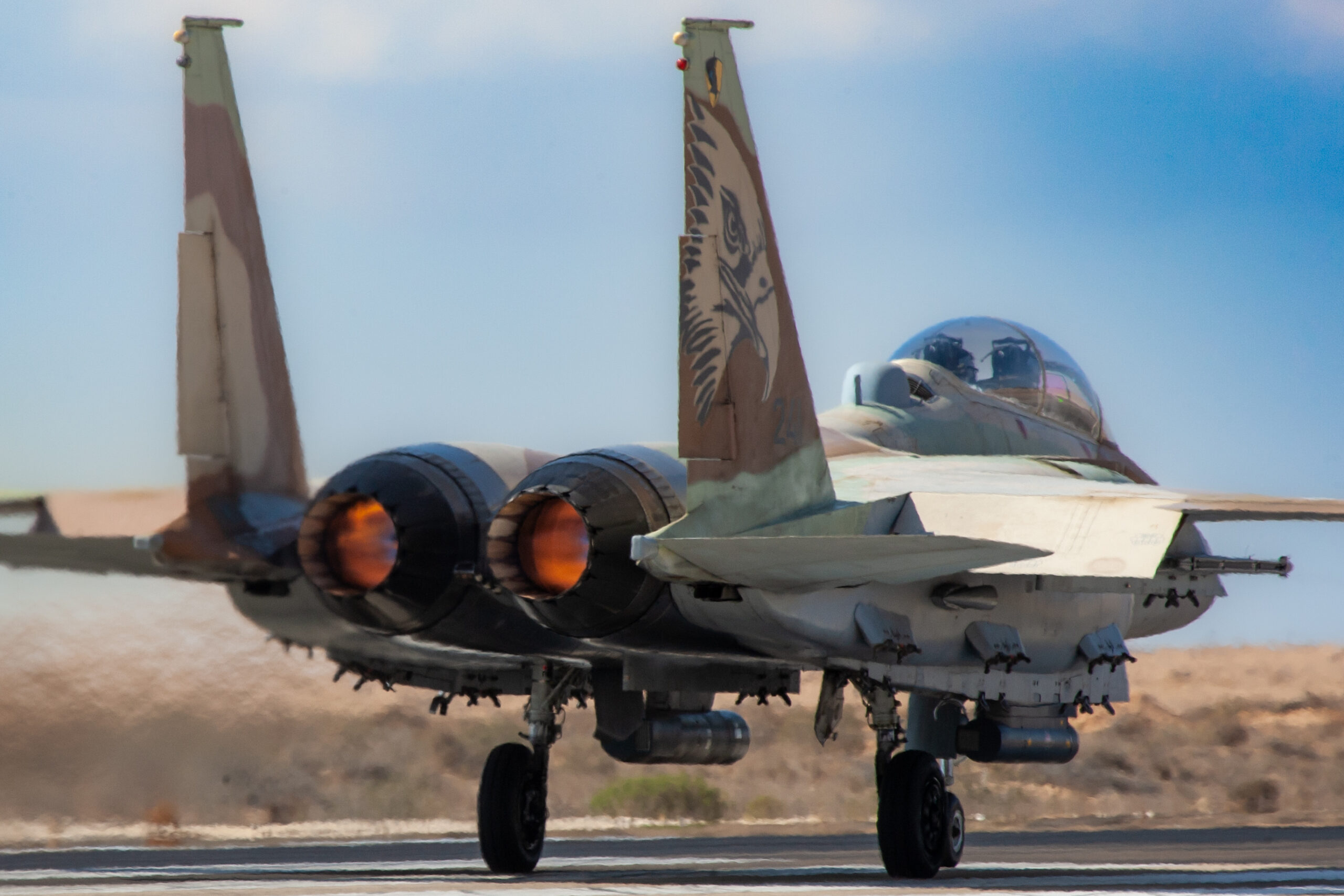

F-15I Ra'am

The F-15I Ra'am, used by the Israeli Air Force, is a variant of the F-15E Strike Eagle tailored for long-range strike missions.

• Engines: Pratt & Whitney F100-PW-229
• Thrust: 29,000 lbs (with afterburner)
• Top Speed: Mach 2.5
• Source

F-16 Fighting Falcon

The F-16 Fighting Falcon is a single-engine multirole fighter aircraft originally developed by General Dynamics for the United States Air Force.

• Engine: General Electric F110-GE-129 or Pratt & Whitney F100-PW-229
• Thrust: 29,000 lbs (with afterburner)
• Top Speed: Mach 2.0
• Source

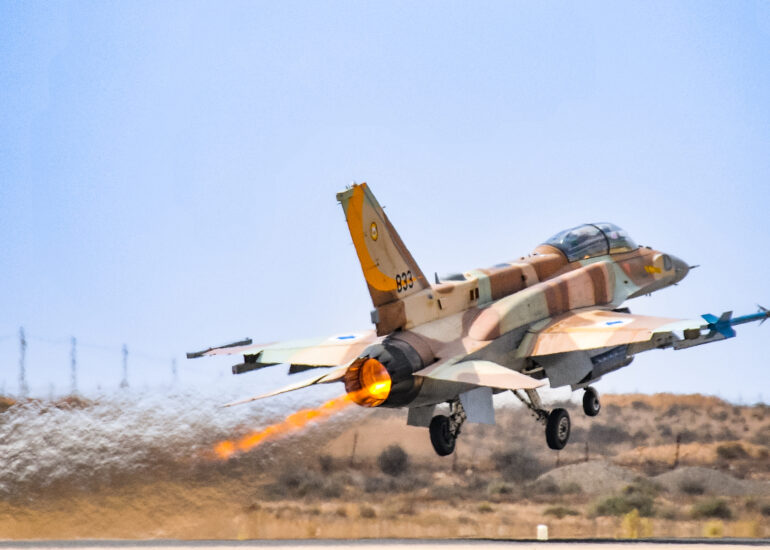

F-16I Sufa

The F-16I Sufa is a variant of the F-16 Fighting Falcon used by the Israeli Air Force, equipped for enhanced long-range missions.

• Engine: Pratt & Whitney F100-PW-229
• Thrust: 29,000 lbs (with afterburner)
• Top Speed: Mach 2.0
• Source

Engine Comparison Table

Aircraft	Engine(s)	Thrust (with afterburner)	Top Speed	Configuration
F-15 Eagle	Pratt & Whitney F100-PW-229	29,000 lbs	Mach 2.5	Twin-engine
F-15I Ra'am	Pratt & Whitney F100-PW-229	29,000 lbs	Mach 2.5	Twin-engine
F-16 Falcon	GE F110-GE-129 / PW F100-PW-229	29,000 lbs	Mach 2.0	Single-engine
F-16I Sufa	Pratt & Whitney F100-PW-229	29,000 lbs	Mach 2.0	Single-engine

Advantages of Afterburner Takeoff

1. Increased Thrust: Afterburners provide a significant boost in thrust, allowing aircraft to achieve higher speeds rapidly.
2. Enhanced Performance: This additional thrust is crucial during combat scenarios and heavy payload takeoffs.
3. Shorter Takeoff Distance: Aircraft can lift off from shorter runways due to the increased thrust provided by the afterburners.

Operational Use

F-15 and F-15I

The F-15 and F-15I are known for their use of afterburners during critical missions. The Israeli Air Force, in particular, has utilized the F-15I’s afterburner capability during operations in contested environments to achieve rapid ascent and maintain air superiority.

• F-15I Operations
• F-15 Global Deployments

F-16 and F-16I

The F-16 and its variants, like the F-16I Sufa, are also equipped with afterburners, which are essential for their multirole capabilities. The afterburner allows these aircraft to perform various missions, from air-to-air combat to ground attacks.

• F-16 Operations
• F-16I Missions

Conclusion

Afterburner takeoff is a critical capability for modern jet aircraft, providing the necessary thrust to achieve rapid ascent and operational readiness. The F-15, F-15I, F-16, and F-16I are prime examples of aircraft that utilize afterburners to enhance their performance in various mission profiles. Understanding the mechanics and benefits of afterburners highlights their importance in maintaining air superiority and achieving mission success.
